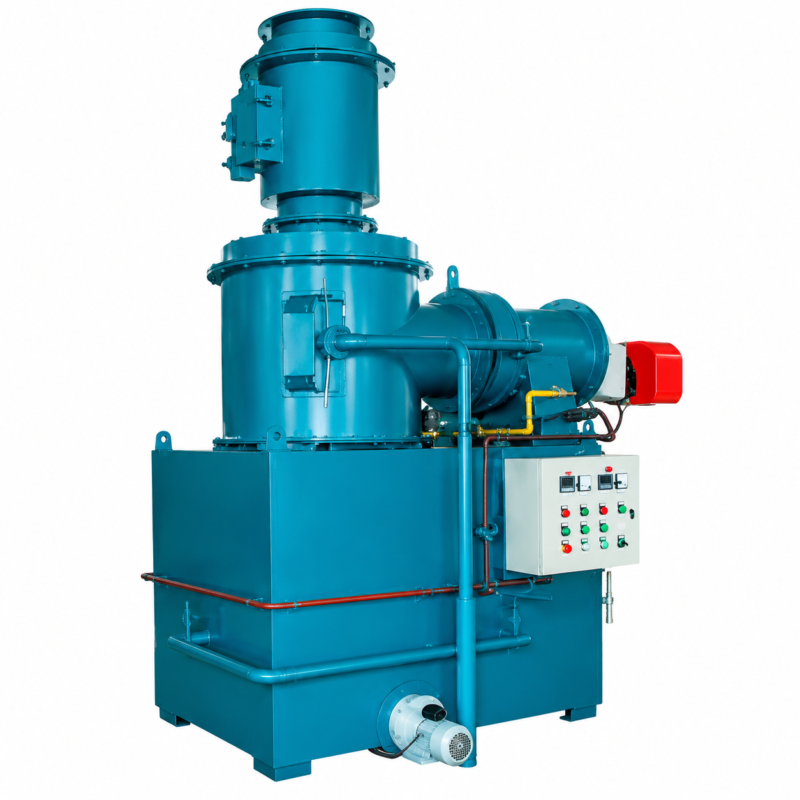

FTLFS-20 Medical Waste Incinerator Machine
Product Overview
The FTLFS-20 Medical Waste Incinerator is an industrial waste-treatment machine designed for the thermal treatment of medical and clinical waste. Its compact configuration combines a primary gasification chamber, a secondary combustion chamber, burner assemblies, an air blower, and an electrical control panel.
With a stated processing capacity of 10–20 kg per batch, the FTLFS-20 is intended for smaller healthcare facilities that require a dedicated waste-treatment system. The supplier’s product information indicates suitability for hospitals with approximately 30–50 beds.
Key Features and Benefits
- 10–20 kg per batch capacity: Designed for small-batch waste processing.
- Dual-chamber combustion configuration: Includes a primary gasification chamber and a secondary combustion chamber.
- Integrated burner system: Equipped with supporting and reburning burner components.
- Air blower system: Features a 0.37 kW blower to support the combustion process.
- Electrical control panel: Provides operator controls for machine operation.
- Compact industrial design: Combines the main chamber, burner assembly, and supporting components in one equipment system.
- Waste-volume reduction: Comparable supplier literature for this type of incinerator reports potential waste-volume reduction of up to 95–96%. Actual results depend on waste composition, moisture content, and operating conditions.
Technical Specifications
- Model: FTLFS-20
- Product Type: Medical Waste Incinerator
- Recommended Facility Size: Hospitals with 30–50 beds
- Burning Capacity: 10–20 kg per batch
- Burner Dimensions: 1.6 × 1.0 × 1.75 m
- Primary Gasification Chamber Volume: 0.20 m³
- Secondary Chamber Volume: 0.14 m³
- Reburning Room Volume: 0.02 m³
- Waste Inlet Size: 380 × 400 mm
- Chimney Height: 5 m
- Chimney Diameter: 280 mm
- Air Blower Power: 0.37 kW
- Supporting Burner Power: 0.11 kW
- Reburning Machine Power: 0.11 kW
- Operating Voltage: 220V
- Approximate Weight: 1,600 kg
Specifications are transcribed from the supplied product image. Please confirm the final dimensions, electrical requirements, and configuration with the supplier before ordering.
Applications
The FTLFS-20 may be considered for medical waste treatment applications at:
- Hospitals and healthcare facilities
- Clinics and diagnostic centres
- Medical laboratories
- Other authorised facilities handling suitable clinical waste streams
Waste acceptance must be determined by the equipment supplier and the applicable local regulations. Not all medical, pharmaceutical, chemical, or hazardous wastes are suitable for incineration in the same system.
Why Choose the FTLFS-20?
The FTLFS-20 combines a stated small-batch processing capacity with an integrated burner system and compact equipment layout. It may be an option for facilities evaluating on-site thermal waste treatment, provided the installation, operating costs, emissions-control arrangements, and regulatory requirements meet their needs.
Important Installation and Compliance Information
Medical waste incineration requires appropriate site planning, trained operators, safe ash handling, and compliance with applicable air-emission and healthcare-waste regulations. Confirm whether additional flue-gas treatment, filtration, monitoring, or other pollution-control equipment is required for your location.
The stated voltage is 220V; verify phase, frequency, rated power, fuel type, and electrical compatibility before purchase. Performance and emission outcomes depend on the installed configuration and operating conditions.
Request a Quotation
Contact our sales team for current pricing, delivery options, installation requirements, available accessories, technical documentation, and after-sales support for the FTLFS-20 Medical Waste Incinerator.
