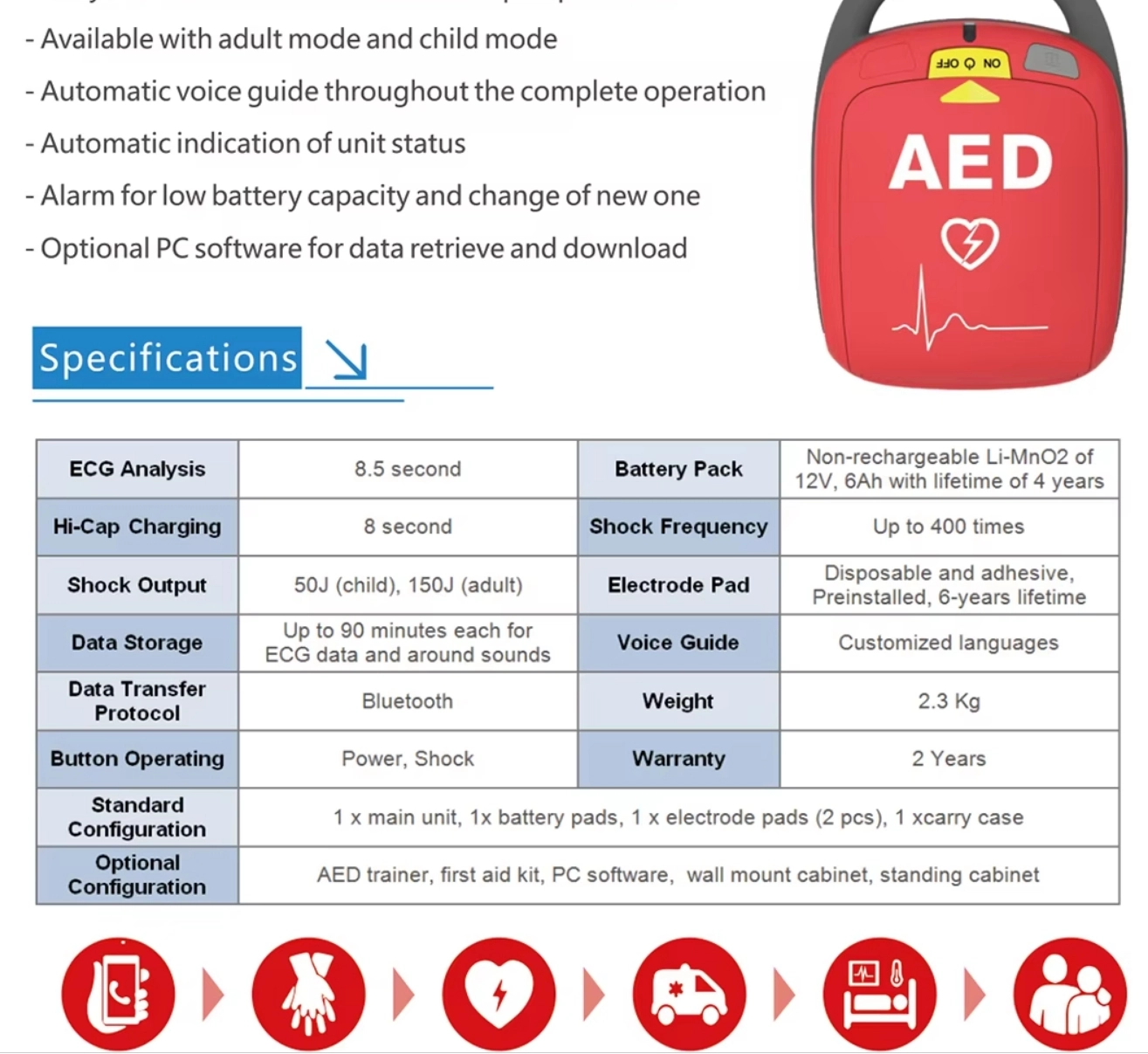

Features* Biphasic Truncated Exponential with low energy to minimize myocardial injury* Not rechargeable Li-MnO2 battery with high capacity supporting up to 400 shocks* Automatic recording of ECG data & around sounds throughout the complete operating* Preinstalled electrode pads with compatibility to adult and child* One step operating for cover open and power on at the same time* Daily selftest and automatic selftest upon power on* Available with adult mode and child mode* Automatic voice guide throughout the complete operation* Automatic indication of unit status* Alarm of low battery capacity and change of new one* Optional PC software for data retrieve and downloadAdvantage of Low Energy BTE* Automatic compensation and adjustment of waveform as per load impedance* Shorter time in ECG analysis and shock preparation* Simultaneous ECG analysis and precharging* Higher success rate in defibrillating* With minimum injury to myocardium* Better for rehabilitation* Faster in response
|
ECG Analysis
|
8.5 Second
|
Battery Pack
|
Non rechargeale Li-Mn battery of 12V, 6 Ah
|
|
Hi-Cap Charging
|
8 Second
|
Shock Frequency
|
Not less than 400 times
|
|
Shock output
|
50 ~150 J
|
Electrode Pads
|
Disposable and adhesive
Adult/pediatric compatible Preinstalled |
|
Data Storage
|
Complete recording
|
Standard Configuration
|
1xmain unit, 1xbattery pack, 1xelectrode pads (2 pcs), 1xcarry case, 1xwarranty
|
|
Data Communication
|
Bluetooth, 4G, GPS
|
Optional Configuration
|
Standing/wall mount cabinet, first aid kit
|
|
Button Operating
|
Power, Shock
|
Warranty
|
1 year
|
